Lithium Ion Battery & Battery Separator Film

The Qualiscan QMS is a modular system consisting of multiple measuring sensors and measurement frames acting as intelligent nodes on a network. Some frames can run up to five Mahlo sensors at once, continuously, precisely and rapidly across the online product.

The measurement of the Anode and Cathode Coating Basis Weight is performed by mass measurements before and after the coater. Mass measurements are taken using Mahlo’s Patented DFI Beta Transmission Sensors or X-Ray Sensors on compact, industrially rugged and clean-room appropriate O-Frames for precise Basis Weight. The electrod’s coating can be a full continuous coverage, rows of coated strips or discontinuous patches.

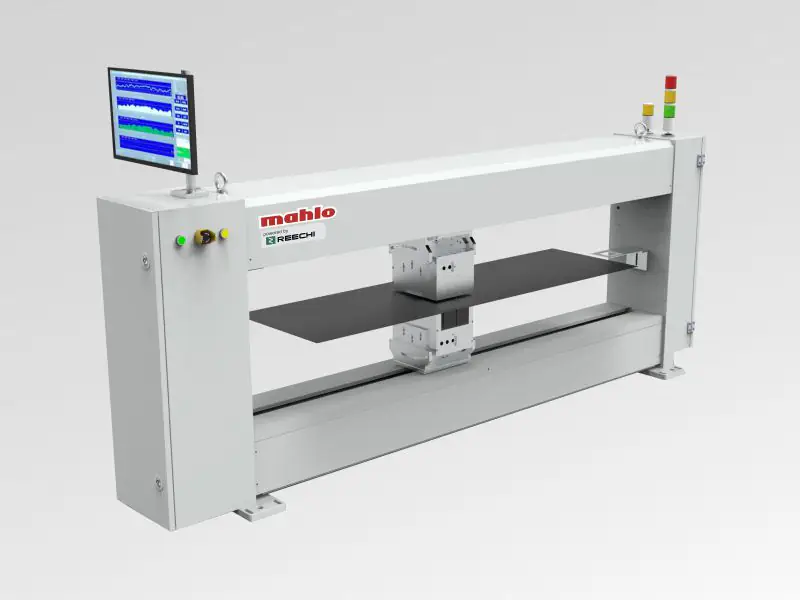

The measuring frame traverses the sensors on-line across the whole product width and provides a cross-machine direction profile of basis weight, thickness or moisture on the display console that is a crosssection of the manufactured product.

One or more different measuring frames can be connected to a Qualiscan QMS system. Connection is made via a normal network cable, a standard 230/115 V source supplies the power.

Accessories and add-on devices for improving accuracy, quality and performance
